Need Router DNS configuration help - Unable to access website inside LAN

[moiztankiwala]

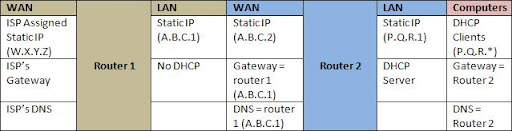

I have the following ethernet network configuration:



One of my computers is set up as a web server and which I can access it from outside my network, but from inside my computer LAN, I cannot acccess it.

Can someone help me on how to configure the Router 2 DNS so that behind the router2, my website URL resolves to the local web server IP address?

Thanks in advance,
Moiz Tankiwala

[YeOldeStonecat]

Assuming it's functioning properly from outside of your network....

Your router most likely does not support "loopback"....meaning, from inside the network..you cannot type the public IP/DNS name....and resolve to a local resource. Most home grade routers don't allow this, usually a feature of more business grade routers.

Sometimes, if you're running old firmware on your router, updating with the latest feature..you'll find support for it added.

[KenJackson]

One of my computers is set up as a web server and which I can access it from outside my network, but from inside my computer LAN, I cannot access it.

Hey, your diagram isn't being displayed on this page. I had to view it in a separate browser tab.

I not sure I understand the diagram but it looks like DNS resolves your web address to IP address W.X.Y.Z , is that right?

Have you tried typing in the IP addess directly in the address bar of your browser? Try it. It might be that you have a local DNS server that won't serve up your external address.

-----
Update: Now I can see your diagram. I don't know what the problem was before.
